Tuesday, 3 December 2013

Using External Login Providers with ASP.NET Identity System

In last post, we saw how simple the new Identity system in ASP.NET is and we explored the code generated by the Visual Studio template for handling local user accounts. In this post, we will see how easy it is to use an external login provider with the identity system.

Allowing users to use an external provider to login to a website has several advantages. It includes:

  1. Your application doesn’t need to store user names and passwords of the users using external login
  2. Almost all of the external login providers have secured logging page, using HTTPS
  3. The user doesn’t need to register to your site and so he/she doesn’t need to remember another set of user name and password

The Startup.Auth.cs file contains a block of commented code for external login providers. The providers include Google, Microsoft, Twitter and Facebook.

// Uncomment the following lines to enable logging in with third party login providers
//    clientId: "",
//    clientSecret: "");

//   consumerKey: "",
//   consumerSecret: "");

//   appId: "",
//   appSecret: "");


Out of these four providers, Google is the easiest provider to configure and use. It is as easy as just uncommenting the last statement in the above commented snippet. For other providers, we need to visit developer help websites of the third parties and input details of the application to get the keys. Pranav Rastogi documented these steps for us; they are available on Web Development Tools Blog on MSDN.

I enabled Google and Twitter in my application. The login page shows up buttons to use these providers.

After logging in using one of the external services, the application would ask the user to set a local user name. The user can optionally also set a local password for the account. Once the login at the external provider is successful, the user would be directed to ExternalLoginCallback. Following is the code inside this action method:
public async Task<ActionResult> ExternalLoginCallback(string returnUrl)
    var loginInfo = await AuthenticationManager.GetExternalLoginInfoAsync();
    if (loginInfo == null)
        return RedirectToAction("Login");

    // Sign in the user with this external login provider if the user already has a login
    var user = await UserManager.FindAsync(loginInfo.Login);
    if (user != null)
        await SignInAsync(user, isPersistent: false);
        return RedirectToLocal(returnUrl);
        // If the user does not have an account, then prompt the user to create an account
        ViewBag.ReturnUrl = returnUrl;
        ViewBag.LoginProvider = loginInfo.Login.LoginProvider;
        return View("ExternalLoginConfirmation", new ExternalLoginConfirmationViewModel { UserName = loginInfo.DefaultUserName });
It does the following:

  1. Checks if the external login is successful. If the login has failed, the user is directed to the login page
  2. Once the login is successful, it checks if the logged in user already has a local username in the application. If the user doesn’t have one, the application prompts the user to create one
  3. If the user already has an account, the application directs the user to the return URL

To identify the user when he/she comes back and logs in using the same third party account, the identity system maintains details in the following two tables:

  1. AspNetUsers: It is the same table that holds details of local users. By default, external user IDs would be created with empty passwords.
  2. AspNetUserLogins: Holds user ID, name of the external provider and a provider key

The code of creating these records can be found in the ExternalLoginConfirmation action method of the AccountController. Following is the snippet that adds the records:

var info = await AuthenticationManager.GetExternalLoginInfoAsync();
if (info == null)
    return View("ExternalLoginFailure");
var user = new ApplicationUser() { UserName = model.UserName };
var result = await UserManager.CreateAsync(user);
if (result.Succeeded)
    result = await UserManager.AddLoginAsync(user.Id, info.Login);
    if (result.Succeeded)
        await SignInAsync(user, isPersistent: false);
        return RedirectToLocal(returnUrl);

The AuthenticationManager.GetExternalLoginInfoAsync called above is a generic method and it provides just the data needed to identify the user. The returned value contains default user name, name of the third party provider and an authentication ID. It doesn’t provide vendor specific details about a user. To get more details from the vendor, we need to use the AuthenticateAsync method.
var vendorResult = await AuthenticationManager.AuthenticateAsync(DefaultAuthenticationTypes.ExternalCookie);

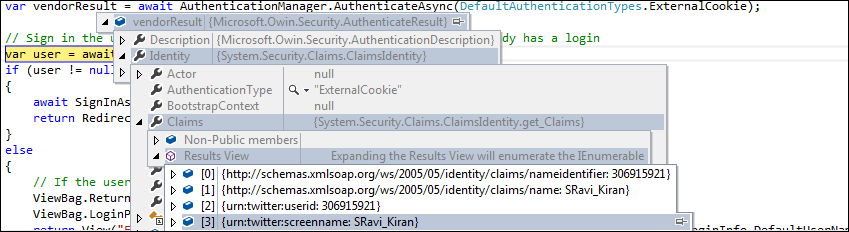

Following screenshot shows the details obtained after logging in using twitter. If you inspect the value returned from Google, you will find e-mail ID of the user in the details, you may use it as the default username for the application as well.

Happy coding!


  1. How to fetch User Facebook Info Name , Gender , Age , City , Photos using external login service in Asp.net web form.

    1. For this you need to save the FacebookToken and modify a bit the options in the startup.owin options for facebook
      it should be something like this
